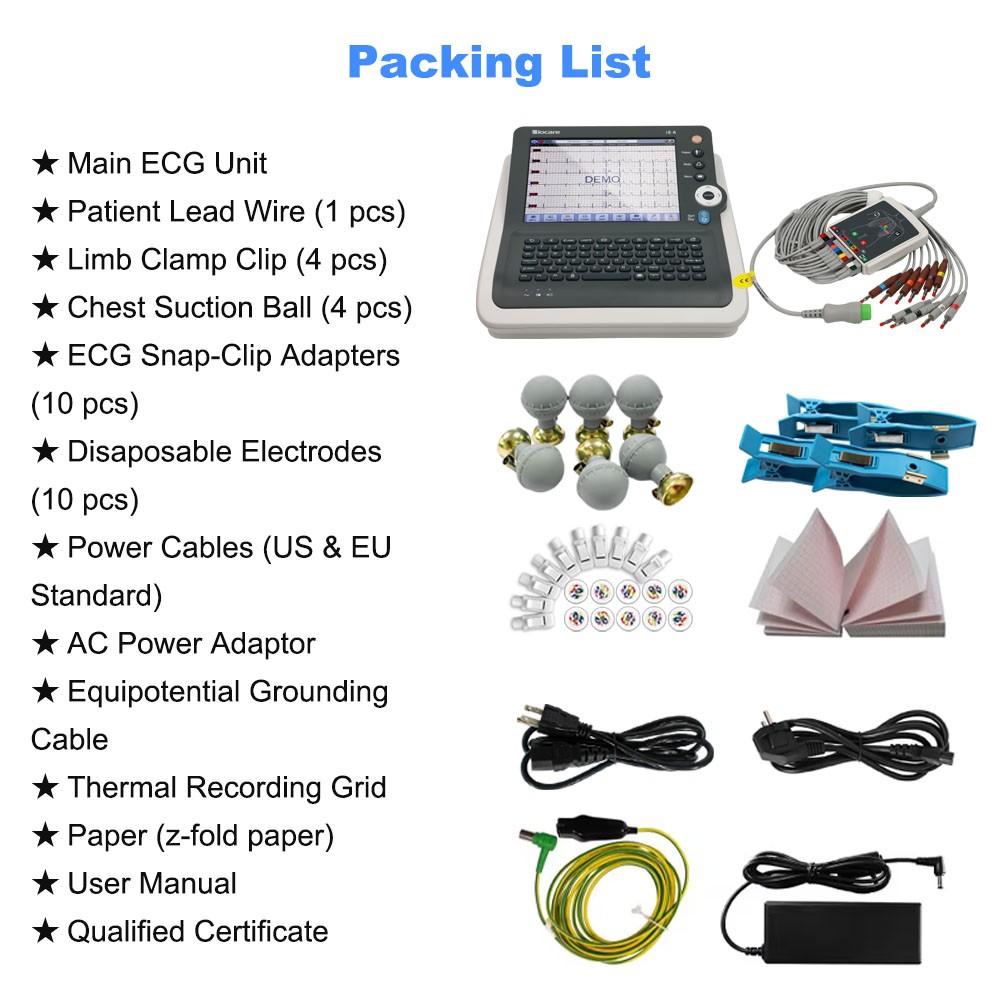

Biocare iE6 12 lead 6 channel ECG Machine Touchscreen with interpretation FDA US

Specifications

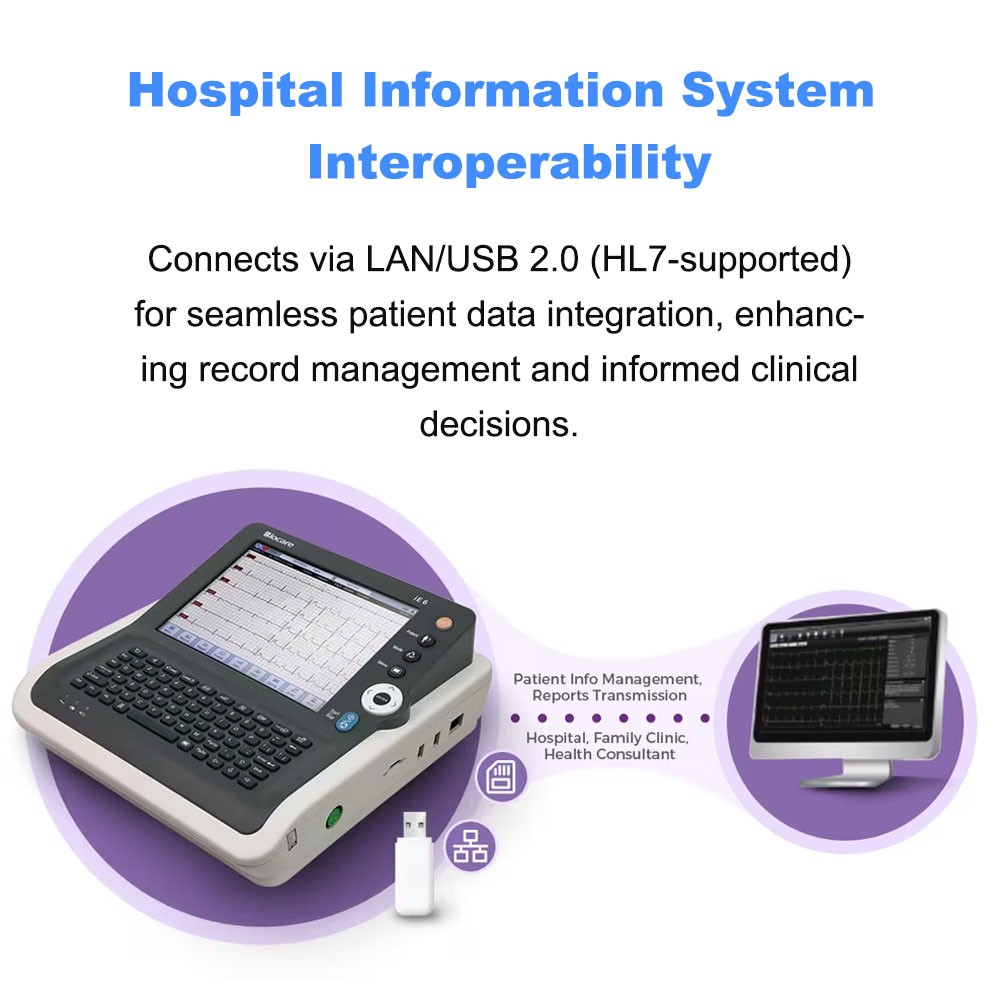

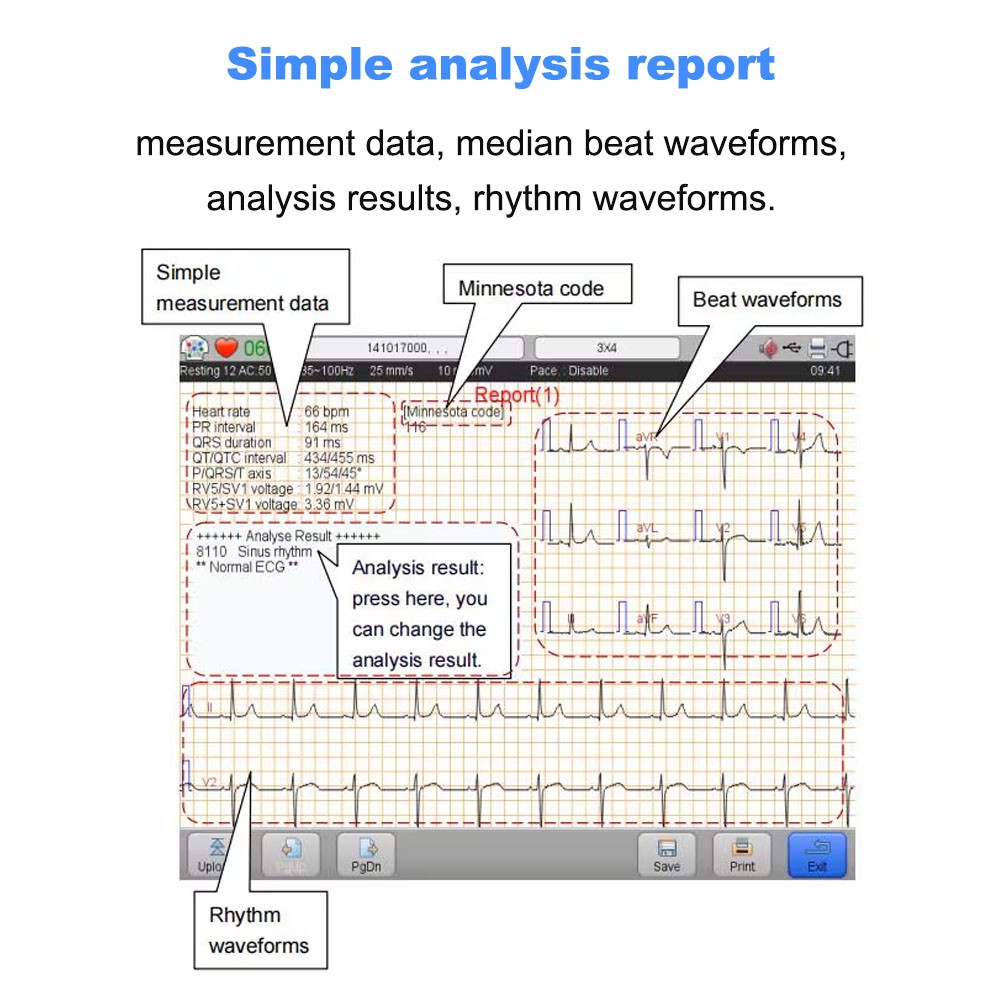

About the item【1】12-lead synchronized acquisition, 6-channel synchronized/real-time printing.【2】8-inch LCD display, designed with PC keyboard and shortcut function keys.【3】Next-generation acquisition system, quickly stable waveforms, saving examination time.【4】Frequency response of 0.05-250Hz, high-precision recording, more suitable for capturing pediatric electrocardiographic waveforms.【5】Supports various data formats such as XML, JPG, DICOM, facilitating network sharing.【6】Internal storage for 21,500 medical records, and supports external storage such as large-capacity SD cards and USB drives.Tech SpecsPRODUCT：Digital Electrocardiograph (Model: iE6)WEIGHT (MAIN UNIT)：5.5lbs / 2.5kgDEVICE DIMENSIONS：10.1'' x 11.4'' x 4.2'' (257 mm×291 mm×106 mm)SCREEN：8.0'' TFT LCD full-view displayAC POWER SUPPLY：100V-240V, 50Hz/60Hz, 80VA DC POWER SUPPLY：Rechargeable Lithium battery（14.8V/ 2200mAh）for 3-hour continuous operationLEAD MODE：Standard 12 leads, CabreraPATIENT TYPE：Adults (older than 12 years old); Pediatrics (age: 29 days - 12 years old); neonates (infants born less than 28 days)ACQUISITION MODE：Simultaneous 12-lead AcquisitionRHYTHM TIME：30s~300s waveforms acquisition for rhythm analysis COMPATIBLE COMPUTER SYSTEM：Windows XP, Win7, Win8, Vista in 32/64 bitSAMPLING RATE：8,000 samples/second/channelRECORD FORMAT：12-lead: 3×4，3×4+1R，3×4+3R，6×2，6×2+1R，1×12+1R；Nehb-lead: 6×1，3×2RECORDER：Thermal Dot Matrix Word Printing SystemRECORDING PAPER：Z- fold paper, 112 mm×140 mmPRINTING SPEED：(5, 6.25, 10, 12.5, 25, 50) mm/s ±5% DATA STORAGE：≥3500 records (10-second acquisition)USB Port：USB 2.0 driveCERTIFICATION：NMPA, FDA, CEPacking ListMain ECG UnitPatient Lead Wire (1 set)Limb Clamp Clip (1 set)Chest Suction Ball (1 set)ECG Snap-Clip Adapters (10 pieces)Disaposable Electrodes (10 pieces)Power Cables (US & EU Standard)AC Power AdaptorEquipotential Grounding CableThermal Recording Grid Paper (z-fold paper)User ManualQualified Certificate

Related Items

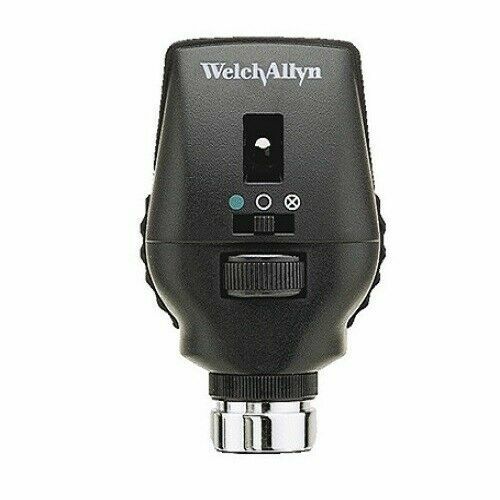

Welch Allyn 3.5V Halogen HPX Co-Axial Ophthalmoscope Head 11720 – EUC
