SEMROCK FF01-390/18-25 BrightLine BANDPASS FILTER Single-Band IDEX FL-004665

Specifications

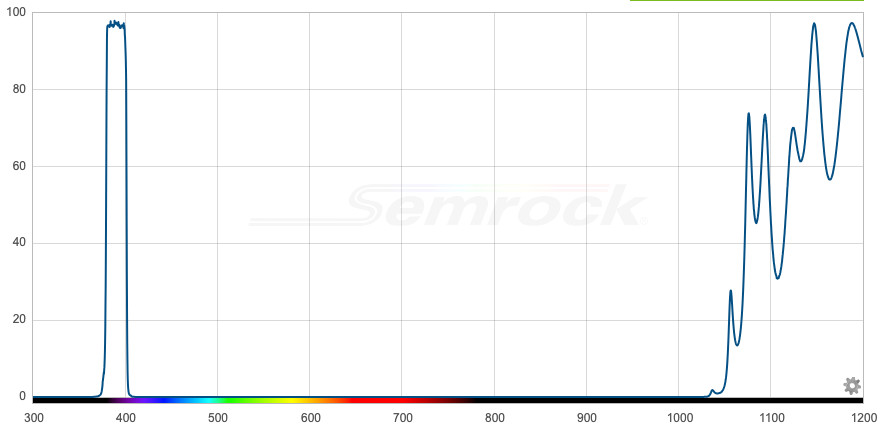

Click here to SEE OUR OTHER LISTINGS! Used: Demo Stock. Some filters may have been used in Lumencor Light Engine demo units. Each filter has been inspected, cleaned and found to be free of scratches, blemishes, fingerprints or any physical defects that would affect functionality. Filters appear to be in good condition. $315 on IDEX / Semrock website Optical SpecificationsValueTransmission Band 1Tavg > 90% 380.8 – 399.3 nmBlocking Band 1 Understanding Optical Density" data-container="body" data-placement="top" data-trigger="focus" data-html="true" data-original-title="Blocking Band 1" style="box-sizing: border-box; color: rgb(119, 188, 31); text-decoration-line: none; background-color: transparent; line-height: inherit; cursor: pointer; transition: 0.3s;">ODavg > 4 200 – 275 nm (Design specification - measurements are noise-floor limited)Blocking Band 2ODavg > 5 275 – 340 nmBlocking Band 3ODavg > 3.3 340 – 345 nmBlocking Band 4ODavg > 3.3 423 – 428 nmBlocking Band 5ODavg > 5 428 – 1000 nmCenter Wavelength 1390 nmGuaranteed Minimum Bandwidth 118.5 nmFWHM Bandwidth 1 (nominal)22.4 nmGeneral Filter SpecificationsValueAngle of Incidence0 ± 5 degreesCone Half-angle7 degreesOptical Damage RatingTesting has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.Physical Filter Specifications Applies to standard sized parts; contact us regarding other sizes" data-container="body" data-placement="top" data-trigger="focus" data-html="true" data-original-title="Physical Filter Specifications" style="box-sizing: border-box; color: rgb(119, 188, 31); text-decoration-line: none; background-color: transparent; line-height: inherit; cursor: pointer; transition: 0.3s;">ValueTransverse Dimensions (diameter)25 mmTransverse Tolerance+ 0.0 / – 0.1 mmFilter Thickness (mounted)5.0 mmFilter Thickness Tolerance (mounted)± 0.1 mmClear Aperture≥ 21 mmScratch-Dig60-40Filter Thickness (unmounted)2.0 mmFilter Thickness Tolerance (unmounted)± 0.1 mmOrientationArrow on ring indicates preferred direction of propagation of light
