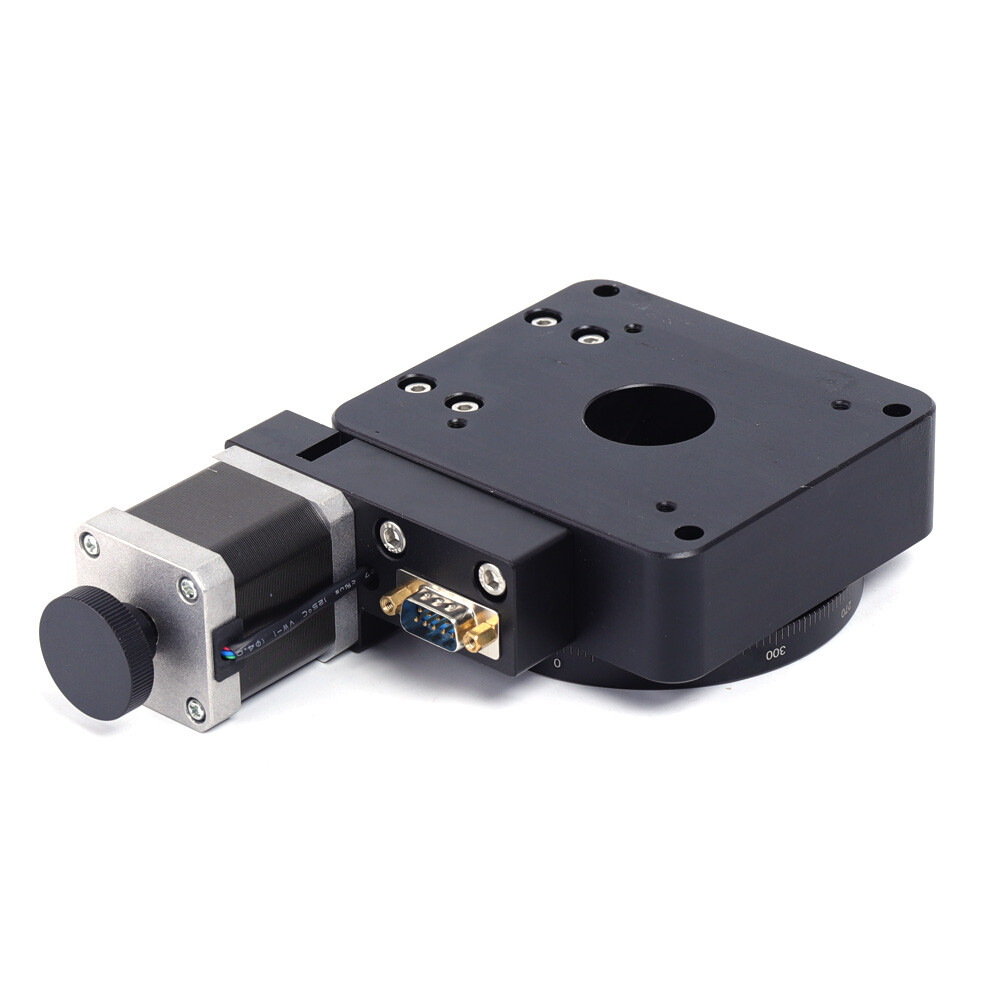

Electric Motorized Rotation Platform – Precision Optical Rotary Stage 100mm

Electric Motorized Rotation Platform – Precision Optical Rotary Stage 100mm

USD 300.09 USD

SKU: wLKKeDHX

Brand: TBVECHI

MPN: DOESN NOT APPLY

Condition: New

Tags: 0.0005° 0.005° = 18" 0.01 0.01° = 36" 1.7kg 10μm 15μm 23*13*16cm 25 sec 2kg 360 360 mm 45kg 80μm Aluminum-black anodized bearing DOESN NOT APPLY HT03RA100 TBvechi Φ100mm

Categories: Medical, Lab & Dental Supplies

Specifications

Table Size	Φ100mm
Load	45kg
Itinerary	360°
Packing Size	231316cm
Parallelization	80μm
Resolution / Pulse(no Subdivision)	0.01 °
Recoil	0.005° = 18"
Material	Aluminum-black anodized
Top Board Beat	15μm
Weight	1.7kg
Guide Rail	bearing
Product Model	HT03RA100
Absolute On-axis Accuracy	0.01° = 36"
Repeatability	0.005° = 18"
Rotation Speed (maximum)	25° / sec
Gross Weight	2kg
Resolution / Pulse(20 Subdivisions)	0.0005°
Eccentricity	10μm
Lost Movement	0.005° = 18"
Brand	TBVECHI
MPN	DOESN NOT APPLY

Unleash the power of precision with our electric rotating platform! Constructed with advanced technology, our electric rotation platform is manufactured for the most demanding applications. Rotation Speed (Maximum): 25°/sec.
