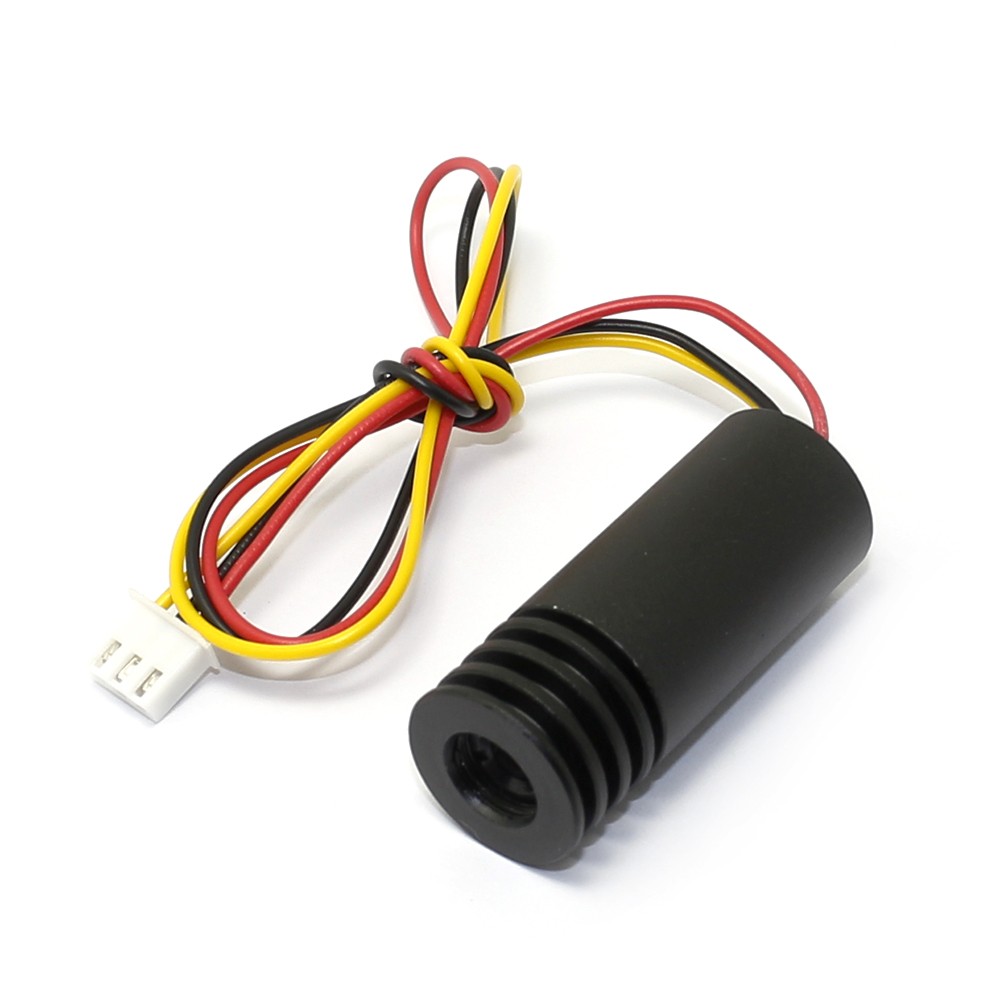

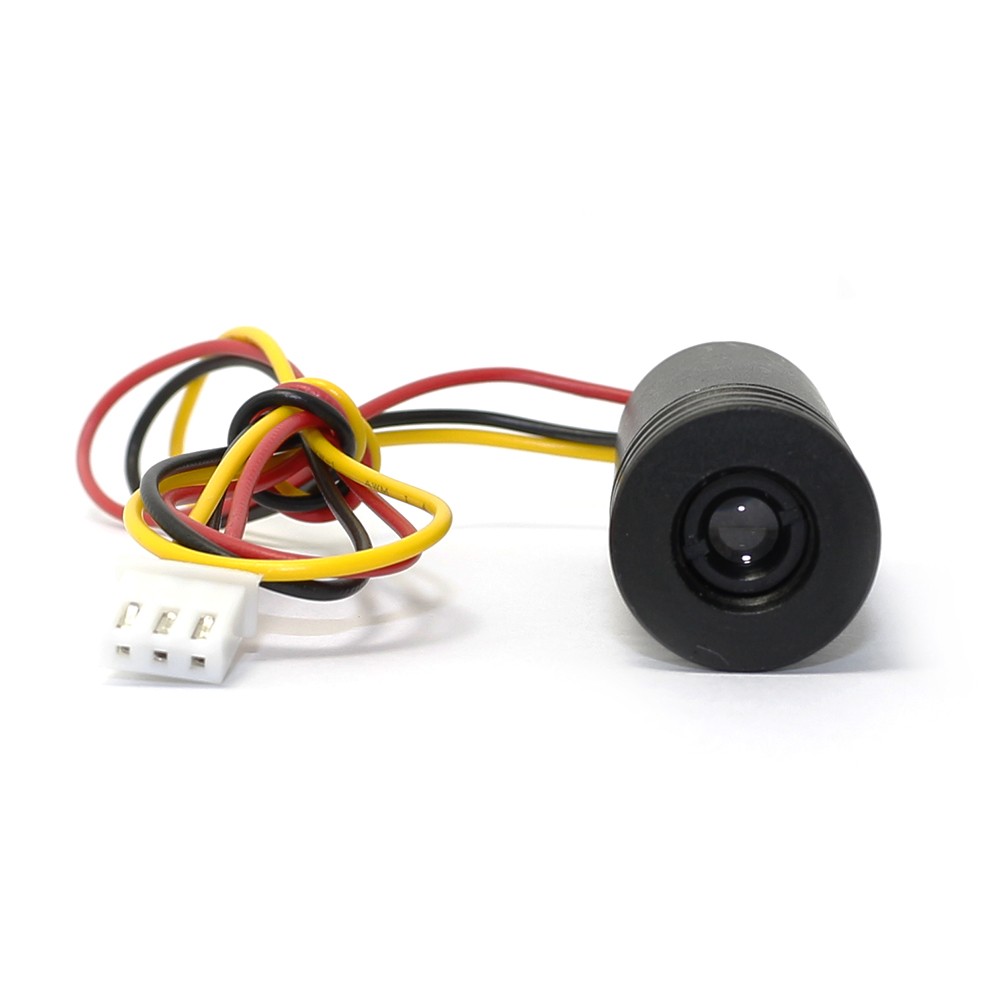

980nm Infrared IR Laser Dot Module 5VDC 120mw with TTL 100KHz

Specifications

980nm Infrared IR Laser Dot Module 5VDC 120mw with TTL 100KHz Specification Wavelength 980nm Ouptut Power 120mW Current <200mA Power supply 5.0VDC TTL modulation Voltage 0-5V TTL frequency 0-100KHz Dimension: 18mmx45mm The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it. Off low, high open, normal status open Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive Features: . This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab. The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. Package 1 x 980nm 120mw Infrared IR Laser Dot Module w/TTL 100KHz
