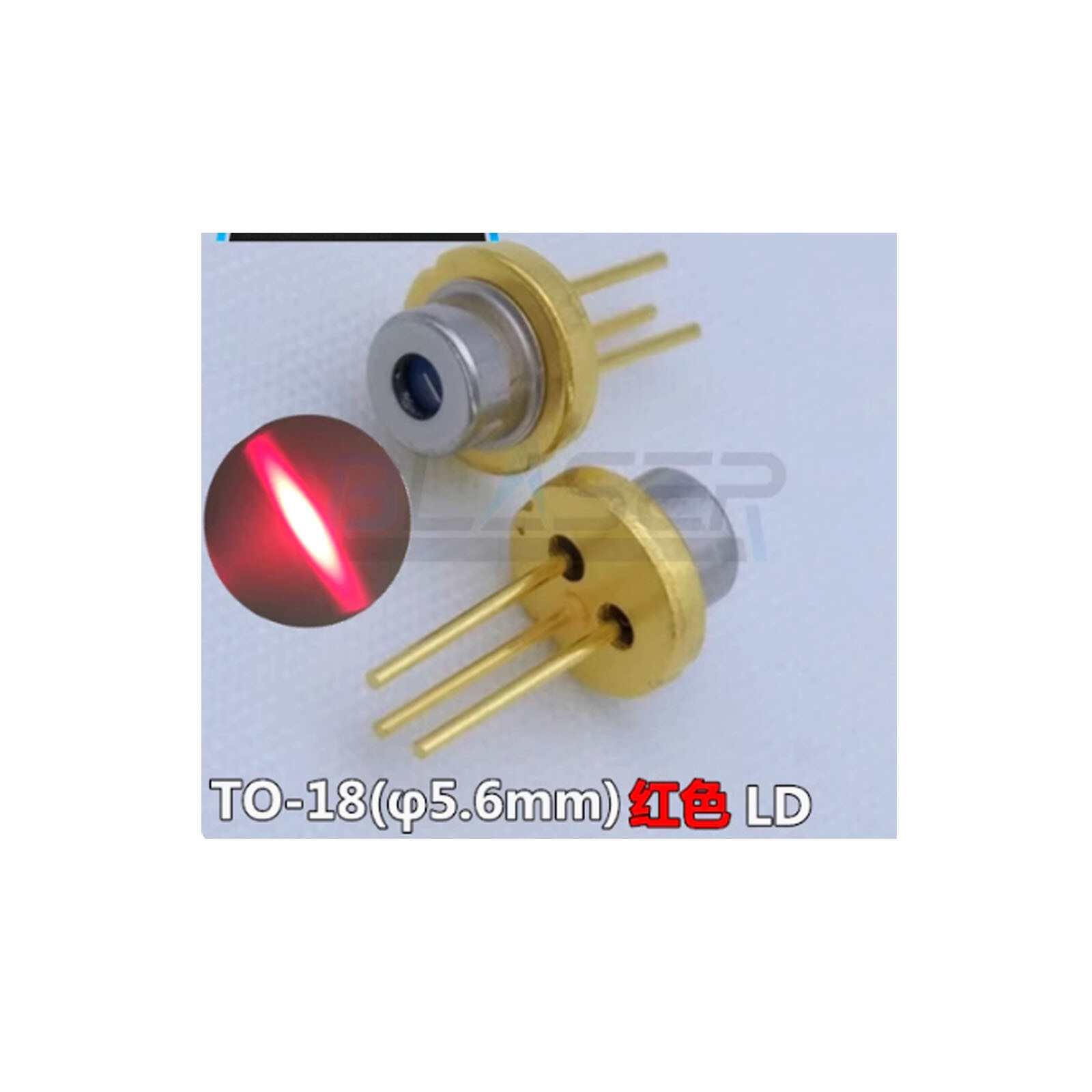

635nm 5mw Orange-Red HLD6350005T4N N-type Laser Diode TO-18 φ5.6mm with Window

635nm 5mw Orange-Red HLD6350005T4N N-type Laser Diode TO-18 φ5.6mm with Window

USD 7.51 USD

SKU: dx48S1Fo

Condition: New

Tags: 25-100mw 30 Days 5.6mm 635nm Buyer China Does Not Apply Jolooyo Returns Accepted Unit Φ 0.5 mm

Categories: Business & Industrial

Specifications

Return Shipping Will Be Paid By	Buyer
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Brand	JOLOOYO
Unit Type	Unit
Output Power	25-100mw
MPN	Does Not Apply
Country/Region Of Manufacture	China
Module Diameter	5.6mm
Wavelength	635nm

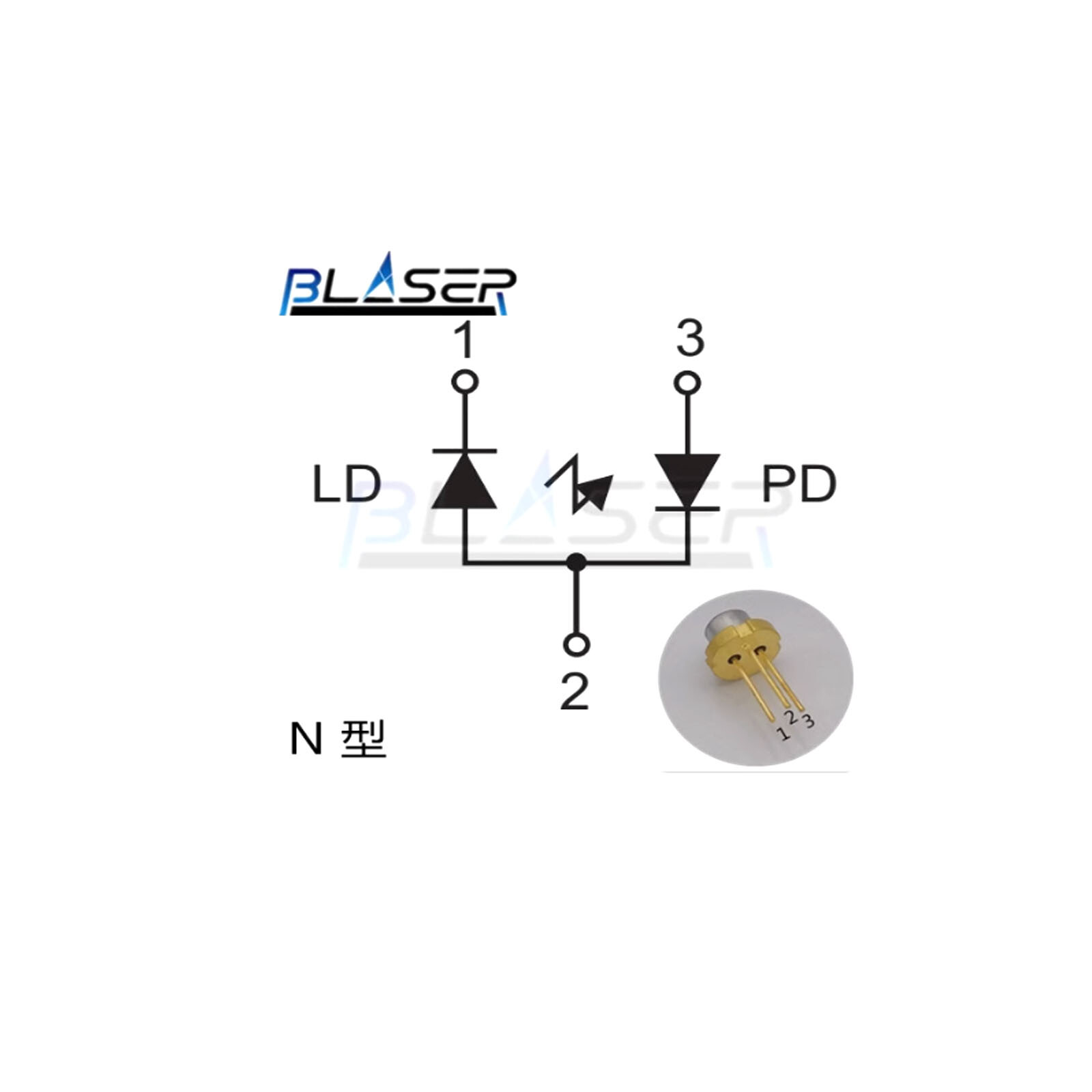

【品名型号】 Laser Diodes HLD6350005T4N B02-2Specifications:Wavelength: 635nmLight Output: 5mW CW mW Package Type: TO-18(Φ5.6mm) Absolute Maximum Ratings(Tc=25℃)ParameterSymbolsRatingsUnitsOptical Output（功率）Po5mWReverse Voltage（电压）Vr 2VOperating Temperature（工作温度）Top- 10 ～ 40℃Storage Temperature（储存温度）Tstg- 20 ～ 85℃Electrical and Optical Characteristics(Tc=25℃)ParameterSymbolsTyp.Unit.Threshold Current（阈值电流）Ith20mAOperating Current（工作电流）Iop43mAOperating Voltage（工作电压）Vop2.2VoltSlope Efficiency （斜率效率）η1.6mW/mAMonitor Current （峰值电流）Im0.5mABeam Divergence（水平方向）θ//8deg.(FWHM) （垂直方向）θ⊥32deg.Central wavelength（中心波长）λ635(±10-15)nmand θ⊥ are defined as the angle within which the intensity is 50% of the peak value. 参考尺寸及图片如下： PACKAGE: 635nm 5mw Orange-Red HLD6350005T4N N-type Laser Diode TO-18 φ5.6mm with Window
